HF

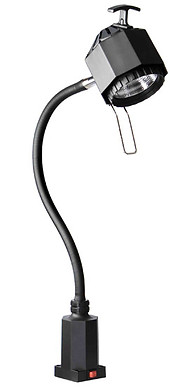

Sunnex HF is a powerful, stable light designed for machinery and industrial applications and suitable for tough environments. Sunnex HF has a flexible arm for stable adjustment of the light focus. An easy-to-grip handle makes the light easy to position. Also available with a fixed AAS arm system with a reach of 1000 mm or 1250 mm.

Sunnex HF is available in a 12V or 24V version that connects directly to low voltage equipment, and as a 230V version with a built-in transformer (not AAS arm). The lamp head has an enclosed light bulb compartment, so Sunnex HF stands up to even the toughest environments.

Available with a magnetic base, C-clamp, wall bracket or desktop base as mounting accessories.

Applications

  • Workshop Machinery

  • Machine tools

  • Manufacturing Machinery

  • Assembly Stations

  • Point Lighting

Benefits

  • Withstands really tough environments

  • Flexible arm for precise control

  • Available with articulated arm system (AAS)

  • Protection class IP20 or IP65

  • Various brackets available

Technical Specifications:

SUPPLY VOLTAGE:230V/12V, 12V, 24V

LIGHT SOURCE:12V/24V/50W, 75W Halogen

ARM LENGTH:500, 700 mm, spot or fixed arm system

COLOUR:Black

COLOUR TEMPERATURE:3000K

IP-RATING:IP20 alt. IP65

PROTECTION CLASS:Klass II

COLOUR RENDERING INDEX:CRI 100

LIFE SPAN LIGHT SOURCE:4.000 h

LAMP HEAD:With or witout joint

BASE:Equipped with four mounting holes

POWER SWITCH:Placed in the base

CABLE LENGTH:2 m
